ENTRY PALLETS (P)
Purpose: For transmitting motion and supporting the oscillations of the
balance-spring system.Manufactured from material: Ruby-5, Ruby-10, and also

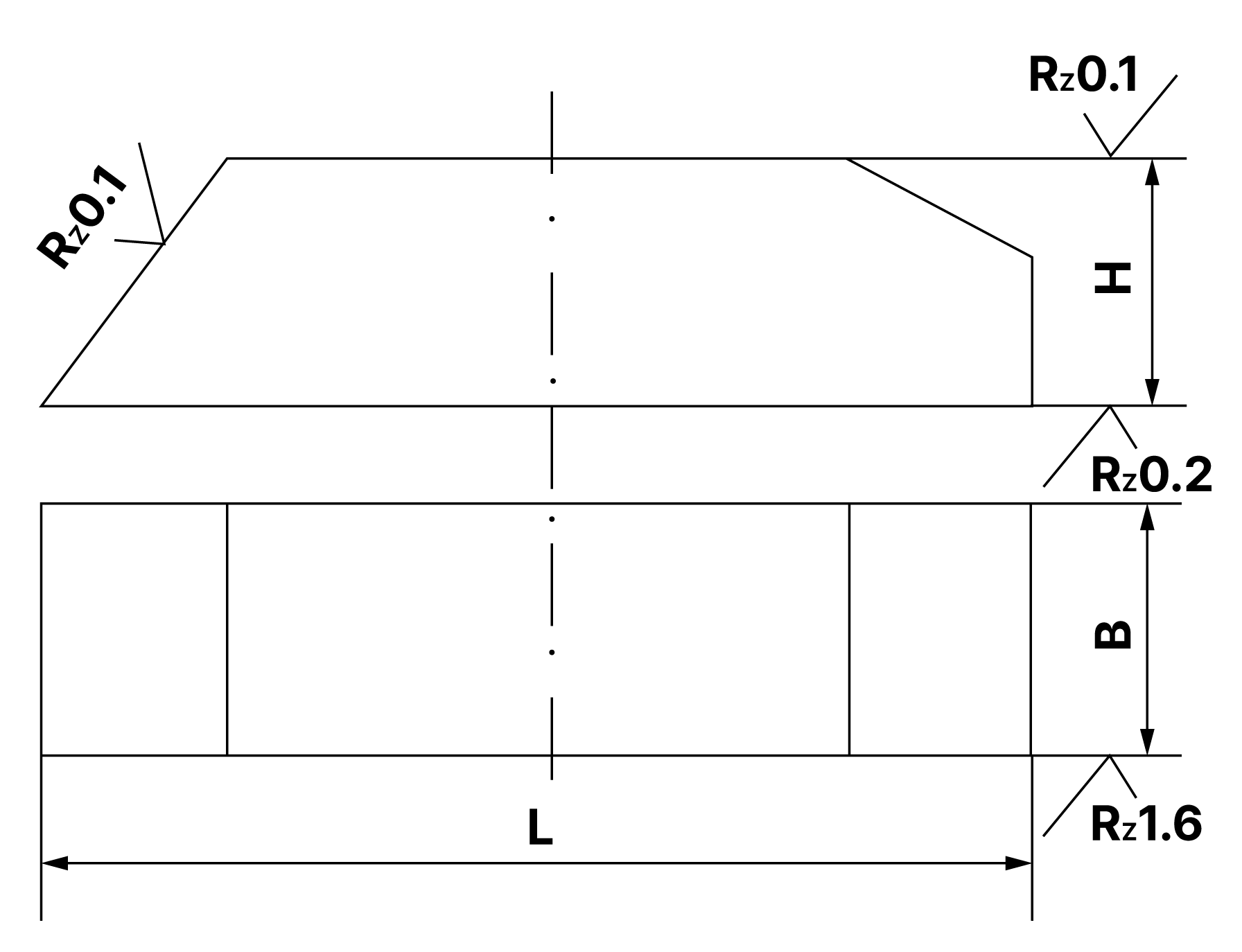

available upon customer request.Upon customer request, pallets can be made
with two radiused entry chamfers located at the intersection of the base and
resting planes with the end face, with chamfer radii of 0.005–0.15 mm.
By agreement with the customer, pallets may also be produced with rounding
of the edge of the side face at the resting and base planes, with a radius of
0.005–0.020 mm.We can also produce items of oth
